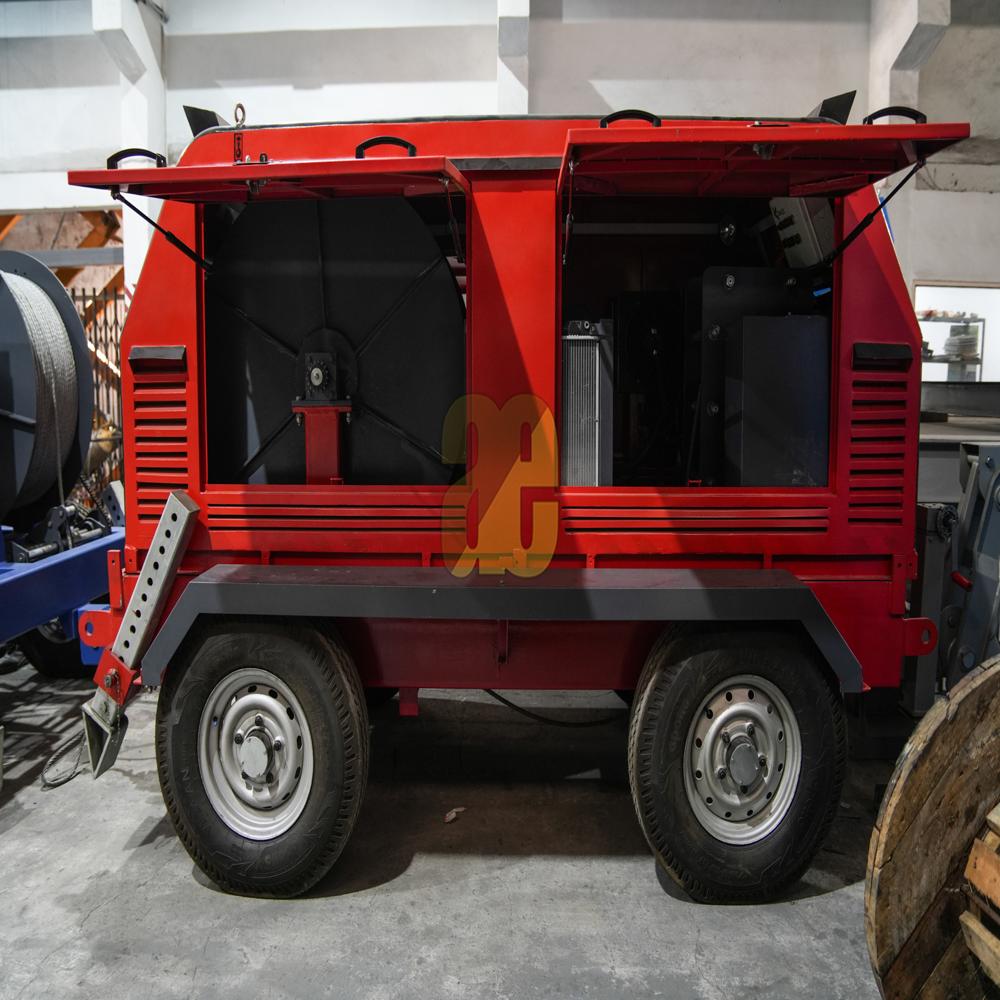

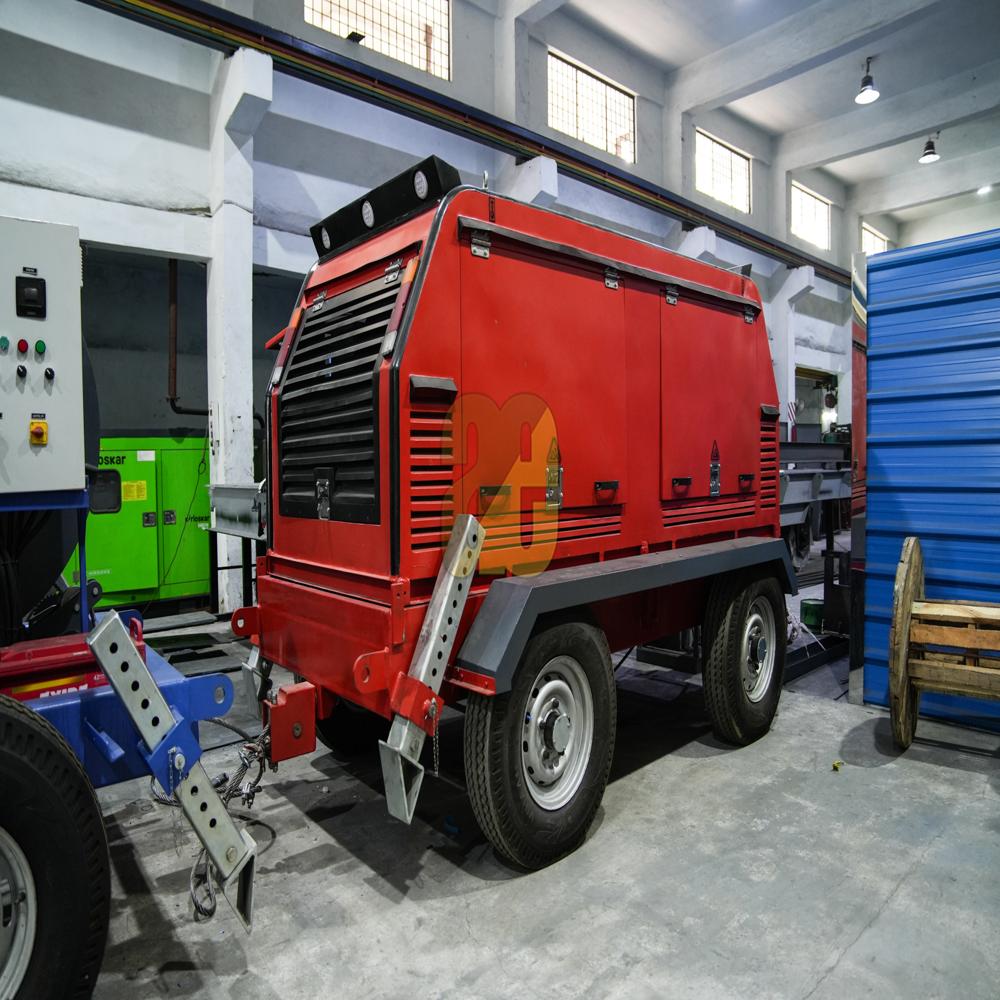

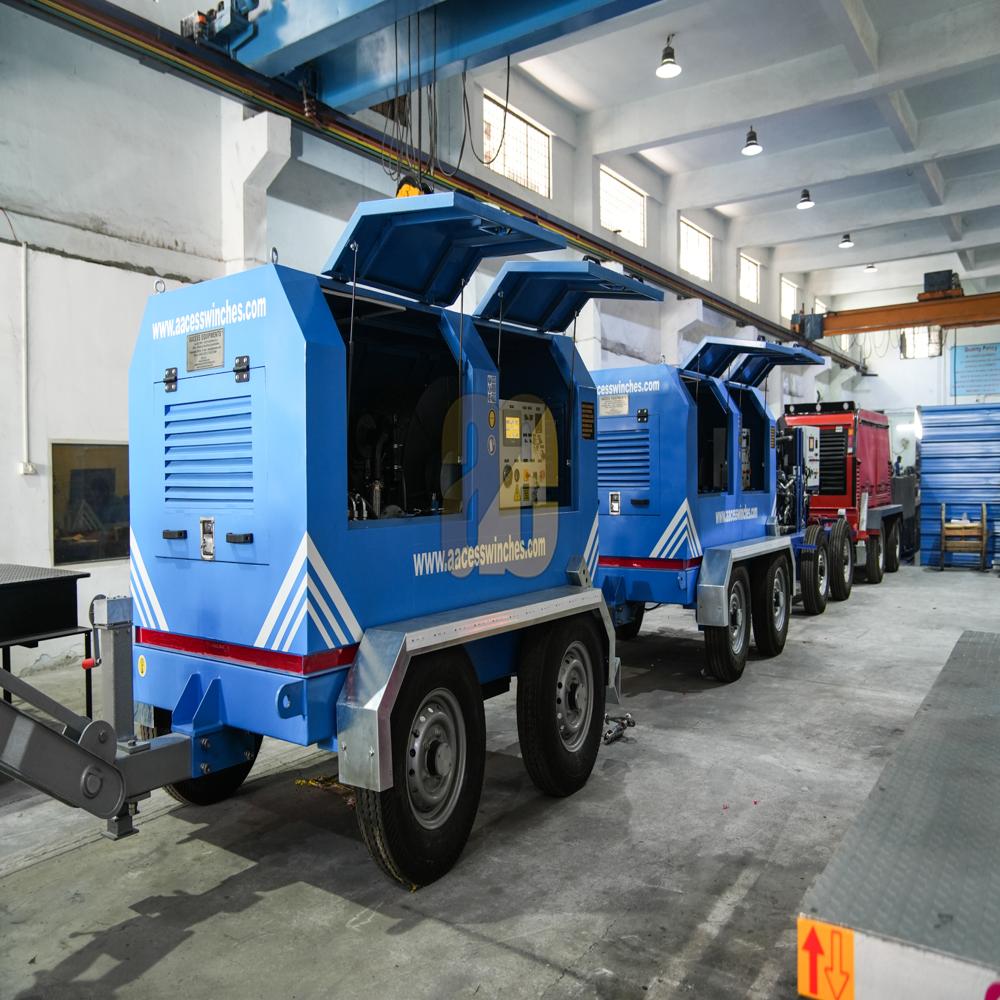

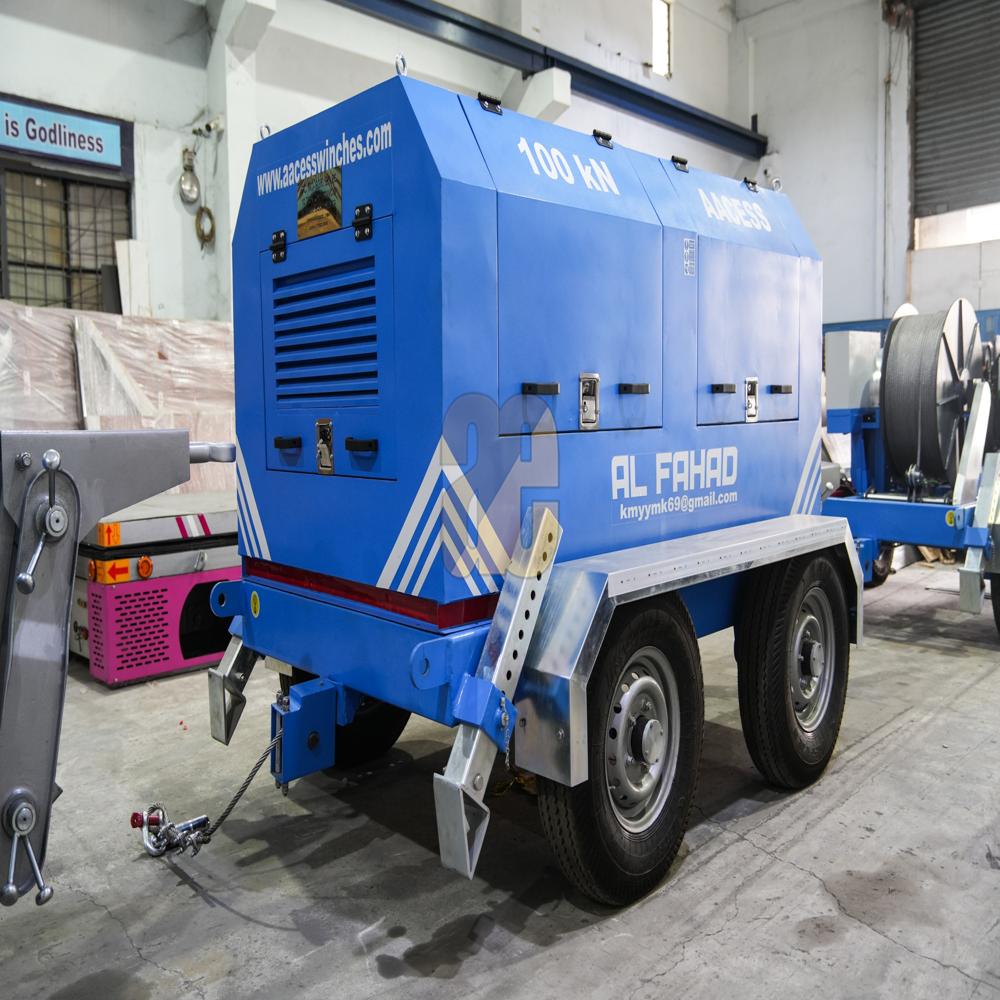

Electrical Cable Pulling Winch

Name: Electrical Cable Pulling Winch
Brand: AACESS EQUIPMENTS
Price: 1500000 INR
Availability: InStock

Price 1500000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Electrical Cable Pulling Winch Specification

Power Source
Electric

Capacity
3ton,5ton,10ton,15ton,20ton and 25ton Ton/day

Wire Rope Diameter
500mtrs,750mtrs and 100mtrs Meter (m)

Electrical Cable Pulling Winch Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Week

Delivery Time
1 Week

About Electrical Cable Pulling Winch

Cable Pulling Winches offered by us are extensivelyused in the Cable Pulling Industry for pulling and laying of heavy duty cableunderground, We offer a wide range of winches that are appropriate for allvaried needs. Our winches are Rugged, Sturdy and are designed to work in themost harsh environment.

Extensively used for pulling the electrical cablesfor underground cabling, Cable Pulling Winches - Electrically Operated ispowered by an AC Power Supply for developing the mechanical power and thismechanical power runs a Hydro pump which runs the Hydro motor. The unit isdriven throughout double capstan making sure of steady speed. The wire ropeneeds for pay in or pay out to pull the cable is provided from a rope holdingdrum which keeps the total wire rope wound on it and offers the same to doublecapstan turret whenever it is needed.

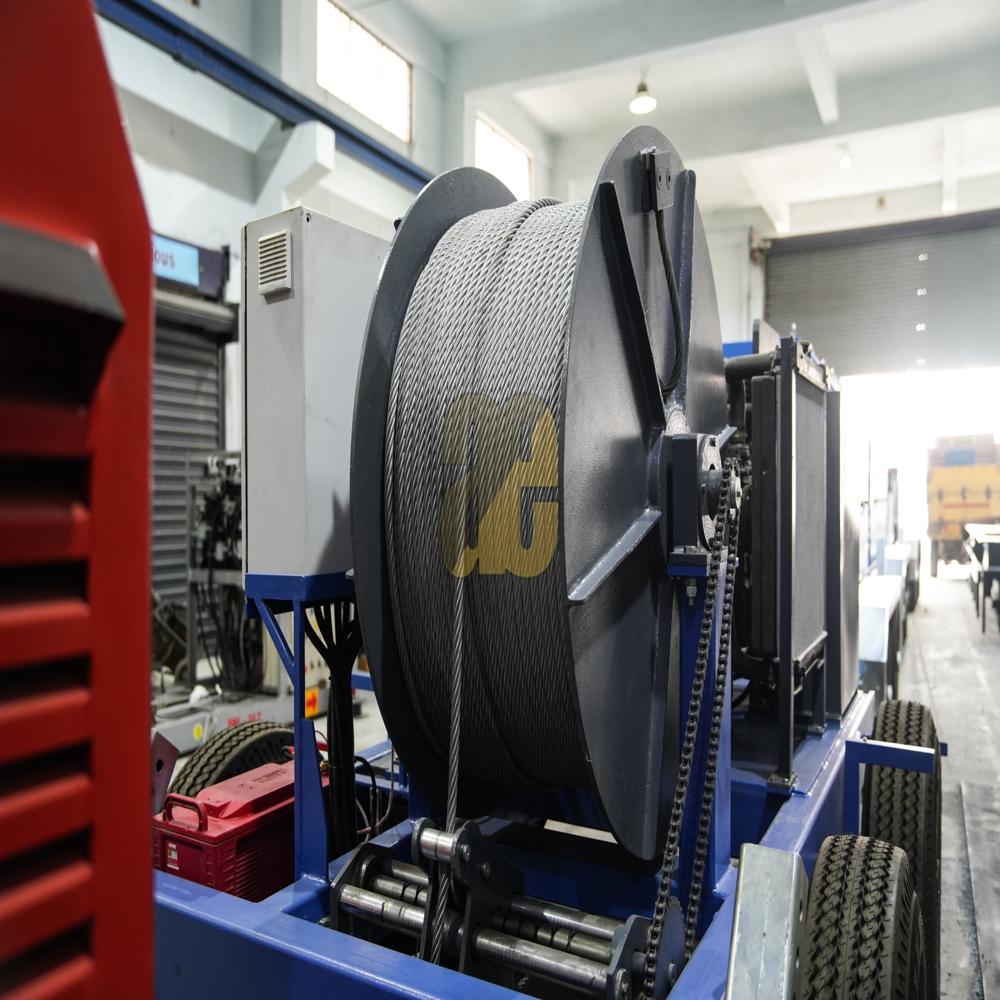

An auxiliary hydro motor fixed to the rope drumwinds and un-winds the rope. The unit is provided with a wire rope guidingmechanism which helps in appropriate laying of the wire rope on the drum. Theunit is equipped with a control panel having a HMI and a PLC for controllingthe unit for speed and load

Pulling Cap Range- 3 ton , 5 ton, 10 ton, 15 ton, 20 ton and 25 ton

Wire Rope -500 mtrs, 750 mtrs and 100 mtrs.

Operational Features of Electrical Cable Pulling Winch

Hand Operated Servo Control System for Varying theSpeed during Pay In and Pay Out.
Continues Display of the Length of the Cable beingpulled.
Facility to record the name of the Project, CableDetails and Cable Size.
Facility to take a print out of the load and speedof pulling as per your convenience.
Ease of setting the cut off Load Value in Kgs andSpeed Value in Mts/min using a user friendly Human Machine Interface unit.
User Friendly Control Panel with all functions likeReset, Emergency Stop, Engine Start & Stop and Unit Performance Detailsdisplayed.
Powered by Electrical Motor which drives a ClosedLoop Hydraulic Pump, which in turn develops oil pressure and supplies this oilto the Hydro Motor which drives the Double Capstan via a Gear Box, therebypulling wire rope.
Canopy protects the unit.

Product details

Minimum Order Quantity	1 Unit
Power source	Electric
Rope Length	500mtrs,750mtrs and 100mtrs
Capacity	3ton,5ton,10ton,15ton,20ton and 25ton
voltage	12 volts
Usage	Industrial

Versatile Capacity Range

Our cable pulling winch comes in various capacity options: 3, 5, 10, 15, 20, and 25 tons per day. This flexibility ensures that you can select a winch tailored to the exact requirements of your project, guaranteeing efficiency and safety during cable installation operations in any industrial or construction setting.

Optimized for Long-Distance Pulling

With options for 500 m, 750 m, and 1000 m wire rope lengths, this electric winch is engineered to handle extensive cable runs, minimizing downtime and eliminating the need for frequent repositioning. Its durability and performance reliability make it ideal for both short and long-distance cable pulling tasks.

FAQ's of Electrical Cable Pulling Winch:

Q: How is the Electrical Cable Pulling Winch operated?

A: The winch operates using an electric power source, making it easy to control and ideal for high-capacity cable pulling. Operators simply connect the winch to the power supply, secure the cable, and use the control panel to manage the pulling process with precision.

Q: What applications are suitable for this winch in India?

A: This winch is widely used in electrical projects, infrastructure works, construction sites, and industries requiring heavy cable installation. Its multiple capacity options and long wire rope capability make it versatile for a range of scenarios.

Q: When should I choose a higher capacity model?

A: A higher capacity winch, such as the 15-ton, 20-ton, or 25-ton variant, is recommended for projects involving heavier or longer cables, or in situations where demanding tasks require more pulling power to ensure safety and efficiency.

Q: Where can these winches be supplied or exported in India?

A: As a leading distributor, exporter, and supplier, we can supply these winches across major Indian cities and export to international markets. Our service network ensures prompt delivery and support nationwide.

Q: What is the process for installing the cable pulling winch?

A: Installation involves securely anchoring the winch at the cable pulling site, connecting the electric power source, and threading the wire rope through the designated pathway. Our technical team can assist with setup and provide operational training as needed.

Q: How does the winch benefit electrical cable installation projects?

A: Using our winch speeds up cable laying processes, reduces manual labor, and minimizes the risk of damage or accidents. It ensures consistent pulling tension, improving overall productivity and safety during installation.
